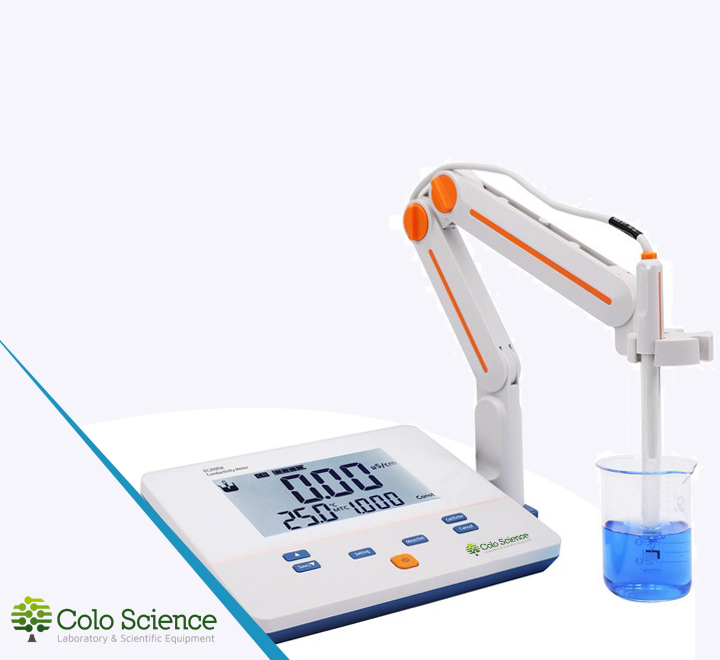

VIKING-EC200 Laboratory Conductivity Meter
Note: Includes PRO6154 EC electrode, 1413 μS/cm standard (50 mL), and EHO5 electrode stand (PRO6110).
Highlight: 6″ LCD, Auto Read & Continuous modes, 1-point calibration, GLP storage (50 sets/parameter), IP54.
Key Features
- 6.0″ high-resolution LCD with backlight.
- Multi-reading modes: Auto Read and Continuous.
- Automatic/Manual Temperature Compensation (ATC/MTC); Auto-Hold with on-screen prompts (Reading / Stable / Locked).
- GLP-style data storage: 50 results for each parameter.
- 1-point calibration with standard recognition (84 μS/cm, 1413 μS/cm, 12.88 mS/cm).
- Settable cell constant; factory reset to defaults.
- IP54 protection; auto shutdown options: 300 / 600 / 1200 / 1800 / 3600 s, or Off.
Included
- PRO6154 EC electrode
- 1413 μS/cm EC standard solution, 50 mL (1 vial)
- EHO5 electrode stand (PRO6110)
Specifications
| Parameter | Value |
|---|---|
| Model | EC200 |
| Measured Parameters | EC / TDS / Temperature |
| Conductivity Range | 0.00 μS/cm to 200 mS/cm |
| Conductivity Resolution | 0.01 μS/cm minimum (varies by range) |
| Conductivity Accuracy | ±1.0% FS |
| Reference Temperature | 25 °C |
| Calibration Points | 1 point (84 μS/cm, 1413 μS/cm, 12.88 mS/cm recognition) |
| TDS Range | 0.00 ppm ~ 100 ppt |
| TDS Resolution | 0.01 ppm minimum (varies by range) |
| TDS Accuracy | ±1.0% FS |
| Temperature Range | −5.0 to 110 °C |
| Temperature Units | °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.2 °C |
| Reading Modes | Auto Read, Continuous |
| On-screen Prompts | Reading / Stable / Locked |
| Temp. Compensation | ATC, MTC |
| Data Storage | 50 results each parameter |
| Inputs | Conductivity with temperature probe; 5-pin aviation connector |
| Backlight | Yes |
| Auto Shutdown | 300 / 600 / 1200 / 1800 / 3600 s; Off |
| IP Rating | IP54 |
| Power | AC adapter, 100–240 V AC input; DC 9 V output |
| Dimensions (Instrument) | 242 × 195 × 68 mm |
| Net Weight | 900 g (1.98 lb) |
